Motors are the integral part of each industrial facility. Pumps, compressors, fans, conveyors and blowers keep manufacturing plants, process industries and utilities running around the clock. Controlling and protecting these motors is one of the most operationally critical parts of a plant’s electrical system. This is where the Motor Control Centre, commonly known as the MCC panel, comes in.
An MCC panel is the nerve centre of motor operations, and the quality of its engineering directly affects plant safety, uptime and maintainability.
Let’s give you a detailed understanding what an MCC panel does, the types available and where each one fits is essential for anyone specifying, procuring or maintaining industrial electrical systems.
Table of Contents
Motor Control Centre( MCC) Panels: Everything You Must Know About:

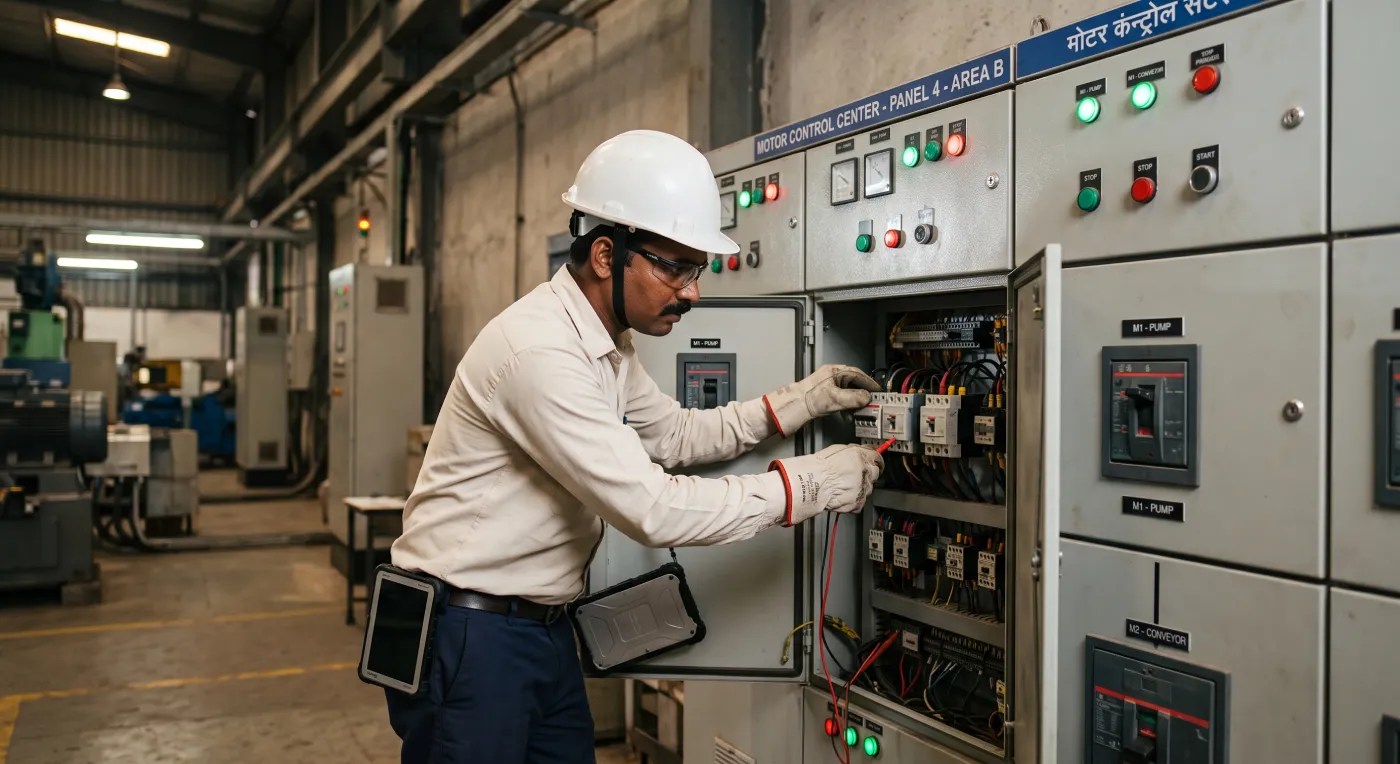

What Is an MCC Panel?
A Motor Control Centre is an area with multiple motor control units, called feeders, within a single structure. Each feeder typically combines a switching device, protection components and control accessories dedicated to a specific motor or load.
An MCC brings centralized control, monitoring and protection into one coordinated system. Traditionally, wiring every motor back to a scattered area set of individual starters was a tough job. Now, MCC panels make it easier to operate, maintain and expand as a facility’s motor load grows.
How an MCC Panel Works
MCC panel distributes incoming power to a series of vertical sections, each containing one or more feeder modules. Every feeder includes:
- Switching device, such as a contactor, to start and stop the motor
- Protection components, including MCCBs, MCBs and overload relays, to guard against overcurrent, short circuits and thermal overload
- Control accessories, like push buttons, indicators. In more advanced setups, PLC or SCADA interfaces for remote monitoring
If fault occurs to one motor circuit, the protection device isolates that feeder without affecting the rest of the panel. Thus, keeping the remaining motors running. This is how MCC panel manages dozens of motors safely from a single, centralized location.
Understanding Functions of MCC Panel
An MCC panel is performs several functions simultaneously:
- Centralized control of multiple motors from a single, organized structure
- Overload and short-circuit protection for connected motors, preventing damage during fault conditions
- Motor starting control, including direct-on-line, star-delta or soft-start arrangements depending on the load
- Isolation, allowing individual feeders to be safely isolated for maintenance
- Monitoring and diagnostics, particularly in intelligent configurations, to track motor health and performance
Types of MCC Panels
Distinct manufacturing facilities have certain requirements. Hence, MCC panels are generally classified by the need of the facility, and how the feeder modules are mounted and accessed.
Fixed-Type MCC Panels
In a fixed-type MCC, feeders are mounted permanently within the panel structure. This design is straightforward, cost-effective and well suited to applications with less maintenance, and where feeders are unlikely to change over time.
Draw-Out Type MCC Panels
Draw-out MCC panels allow individual feeder modules to be withdrawn from the panel without shutting down the entire system. Maintenance, testing or replacement of one feeder can be carried out while adjacent feeders continue to operate. This significantly reduces downtime and is a preferred choice for facilities that need high availability, such as process industries and continuous-operation plants.
Intelligent MCC Panels
Intelligent MCCs integrate microprocessor-based motor protection relays and communication interfaces. Therefore, real-time monitoring of motor parameters such as current, voltage, temperature and running hours become possible.
Usually, these are installed in an advanced facility. These panels comes with a SCADA or building management system, enables predictive maintenance and faster fault diagnosis, making it valuable for plants pursuing higher levels of automation.
Applications of MCC Panels
MCC panels are used wherever multiple motors need coordinated control and protection. Common applications include:
- Manufacturing plants, where MCCs manage production line motors, conveyors and material handling equipment
- Process industries, including chemical, pharmaceutical and food processing facilities that depend on continuous motor operation
- Water treatment facilities, where MCCs control pumps, aerators and dosing systems critical to plant reliability
- Infrastructure and commercial projects, such as HVAC systems, elevators and utility pumping stations
Across these applications, the operating environment, fault levels and expected uptime all influence which type of MCC panel is appropriate.
Benefits of Using an MCC Panel
MCC panel delivers advantages beyond simply switching motors on and off. Here are a few of them:
Promising safety: Centralized protection and isolation reduce the risk of electrical faults. Further, prevents larger failures, protecting both equipment and personnel.
Improve Operational efficiency: Grouping motor controls into a single, organized system simplifies operation and reduces the wiring complexity.
Easier maintenance: Especially in draw-out configurations, feeders can be inspected, tested or replaced with minimal disruption to the rest of the plant.
Scalability: When motor load grows, modular design of MCC allows additional feeders to be incorporated, without redesigning the entire system.
Better fault isolation: A fault on one motor circuit is contained within its own feeder, preventing cascading failures across the plant.
Space optimization: Consolidating multiple starters into one enclosure makes better use of available electrical room space compared to distributed control panels.
Tejshri’s MCC Panels: What makes them the best!
Tejshri’s MCC Panels are custom-engineered according to the need of the facility. Our commitment to provide excellent products made us stand out among our competitors.
Our MCC panels are popular;
- For efficient control and protection of motor-driven systems.
- Built to deliver safe and reliable operation across demanding industrial environments.
- Key specifications include a current rating of up to 3200A, 415V 3-phase operation, fault level withstand capacity of up to 50kA, and enclosure protection of IP42 or IP54 depending on site requirements.
- Available in both fixed and draw-out feeder configurations, Tejshri’s MCC Panels combine centralized motor control, integrated MCCB, MCB and overload relay protection, and a modular, scalable design.
- Engineered for manufacturing plants, process industries and water treatment facilities, and are backed by in-house engineering, manufacturing and testing capabilities that allow every panel to be configured to the specific requirements of the application.
Conclusion
An MCC panel is a guard for your manufacturing plant. It is a coordinated system that brings safety, control and monitoring together in a single, scalable structure
Choosing between fixed, draw-out and intelligent configurations, and the right key specifications has a direct impact on how reliably a plant’s motors perform over their operating life.
At Tejshri, we design and manufacture MCC panels engineered around the real-world requirements of manufacturing, process and infrastructure applications. Our in-house engineering, manufacturing and testing capabilities deliver motor control solutions built for long-term reliability.
Talk to our engineering team to discuss the right MCC panel configuration for your project.
Frequently Asked Questions
What is the main function of an MCC panel?
An MCC panel provides centralized control, switching and protection for multiple motors within an industrial facility.
Where are MCC panels commonly used?
MCC panels are widely used in manufacturing plants, process industries and water treatment facilities, along with infrastructure and commercial projects that rely on multiple motor-driven systems.
What is the difference between a fixed-type and a draw-out MCC panel?
In a fixed-type MCC, feeder components are permanently installed, while a draw-out MCC allows individual feeder modules to be withdrawn for maintenance or replacement without shutting down the entire panel, reducing downtime.
How does an MCC panel improve plant safety?
By isolating protection at the individual feeder level, an MCC panel contains faults within a single motor circuit, preventing them from affecting the rest of the plant and reducing the risk to both equipment and personnel.
What should be considered when selecting an MCC panel?
Key considerations include the current rating, fault level withstand capacity, enclosure protection (IP rating), feeder configuration (fixed or draw-out) and the level of automation required for the application.
